Athena Wall-mounted Battery
Series: Athena A | Athena B | Athena C
Explore our athena wall-mounted battery product range. All products feature LiFePO4 battery technology with 2000-4000 cycle life and 5-year warranty. Contact us for OEM/ODM customization.
Athena Wall-Mounted Battery 2.5kWh (25.6V/100Ah)
Model: SCAE-A-25.6-100
- Voltage
- 25.6V
- Capacity
- 2560Wh（100Ah）
- Discharge Current
- 100A
- Battery Type
- LiFePO4
Athena Wall-Mounted Battery 5kWh (25.6V/200Ah)
Model: SCAE-A-25.6-200
- Voltage
- 25.6V
- Capacity
- 5120Wh（200Ah）
- Discharge Current
- 100A
- Battery Type
- LiFePO4
Athena Wall-Mounted Battery 5kWh (51.2V/100Ah)
Model: SCAE-A-51.2-100
- Voltage
- 51.2V
- Capacity
- 5120Wh（100Ah）
- Discharge Current
- 100A
- Battery Type
- LiFePO4

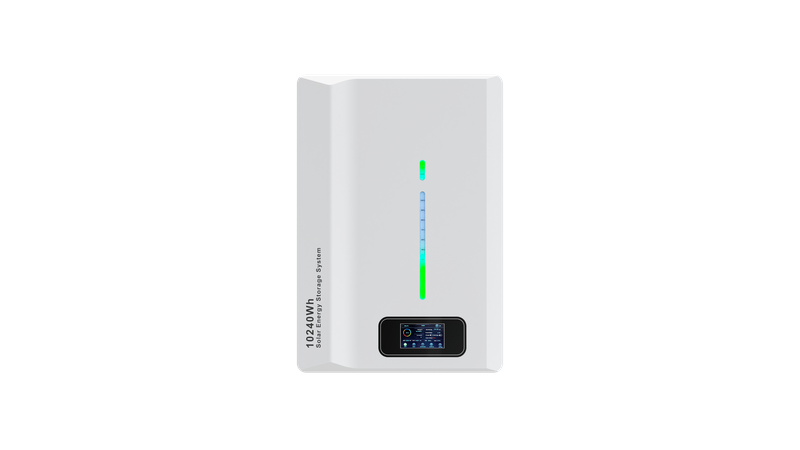

Athena Wall-Mounted Battery 10kWh (51.2V/220Ah)
Model: SCAE-A-51.2-200
- Voltage
- 51.2V
- Capacity
- 10240Wh（200Ah）
- Discharge Current
- 100A/200A
- Battery Type
- LiFePO4
Athena Wall-Mounted Battery Value Series 15kWh (51.2V/300Ah)
Model: SCAE-B-51.2-300
- Voltage
- 51.2V
- Capacity
- 15360Wh（300Ah）
- Discharge Current
- 200A
- Battery Type
- LiFePO4

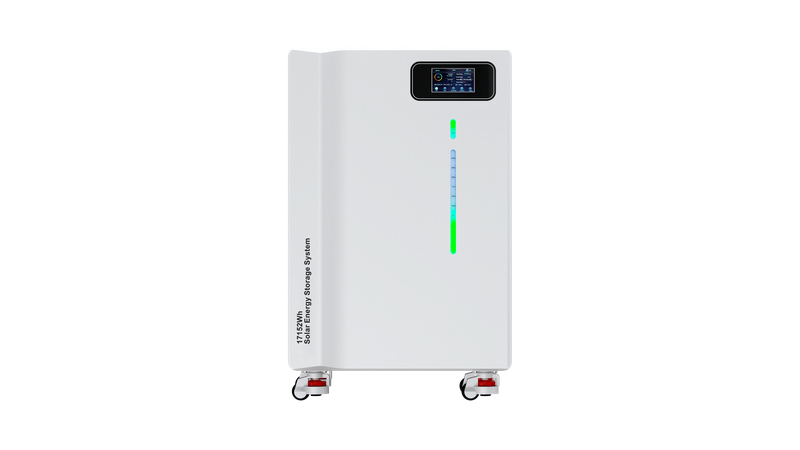

Athena Wall-Mounted Battery Value Series 17kWh (51.2V/335Ah)
Model: SCAE-B-51.2-335
- Voltage
- 51.2V
- Capacity
- 17152Wh（335Ah）
- Discharge Current
- 200A
- Battery Type
- LiFePO4
Athena Wall-Mounted Battery Value Series 34kWh (51.2V/670Ah) 200A BMS
Model: SCAE-B-51.2-670
- Voltage
- 51.2V
- Capacity
- 34304Wh（670Ah）
- Discharge Current
- 200A
- Battery Type
- LiFePO4

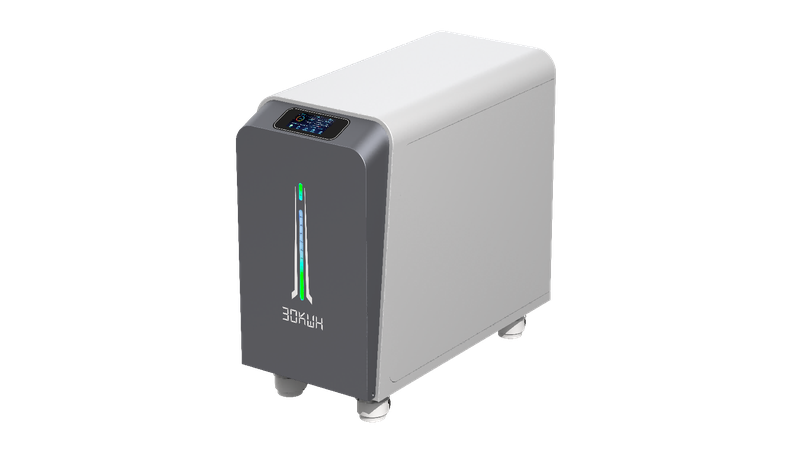

Athena Wall-Mounted Battery Value Series 30kWh (51.2V/600Ah) 200A BMS
Model: SCAE-C-51.2-600
- Voltage
- 51.2V
- Capacity
- 30720Wh（600Ah）
- Discharge Current
- 200A
- Battery Type
- LiFePO4
Frequently Asked Questions
What is a wall-mounted LiFePO4 battery?
A wall-mounted battery is a compact LiFePO4 energy storage unit designed to be installed on a wall, saving floor space. The Athena series covers 2.5kWh to 34kWh at 25.6V or 51.2V, suitable for residential and light commercial storage when paired with a compatible hybrid inverter.
Do I need a separate inverter with Athena batteries?
Yes. Athena wall-mounted batteries are DC battery units that require a separate hybrid or off-grid inverter. They are compatible with most major inverter brands supporting 48V/51.2V LiFePO4 battery communication protocols.
Can multiple Athena batteries be connected in parallel?
Yes, multiple Athena battery modules can be connected in parallel to increase total capacity. The BMS in each module manages cell balancing and protection. Models with 100A/200A discharge current support larger load demands.
What is the cycle life and warranty?
Athena batteries use Grade A LiFePO4 cells rated for 2,000-4,000 cycles and come with a 5-year warranty. The BMS provides overcharge, over-discharge, over-current, and short-circuit protection.
